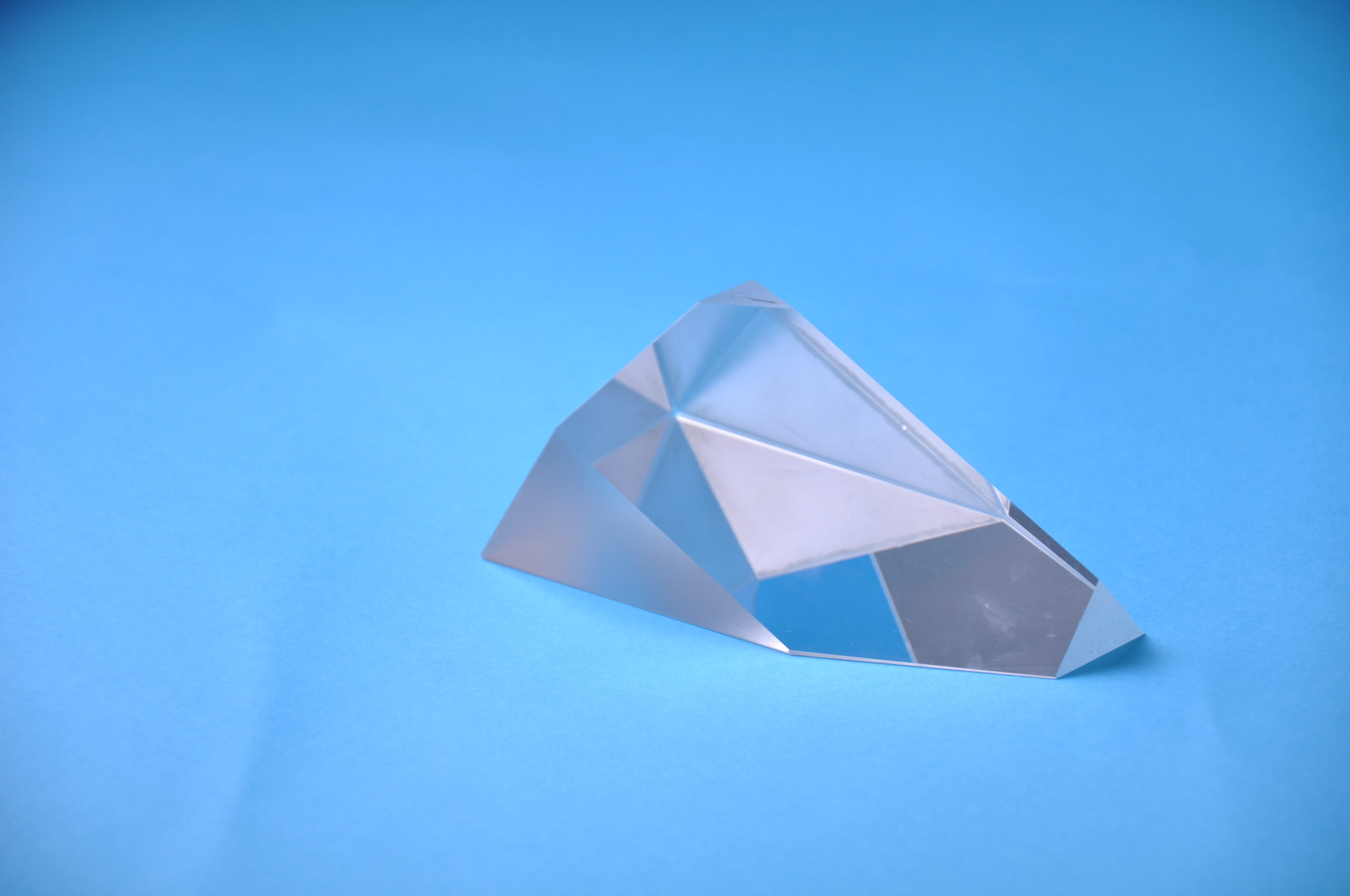

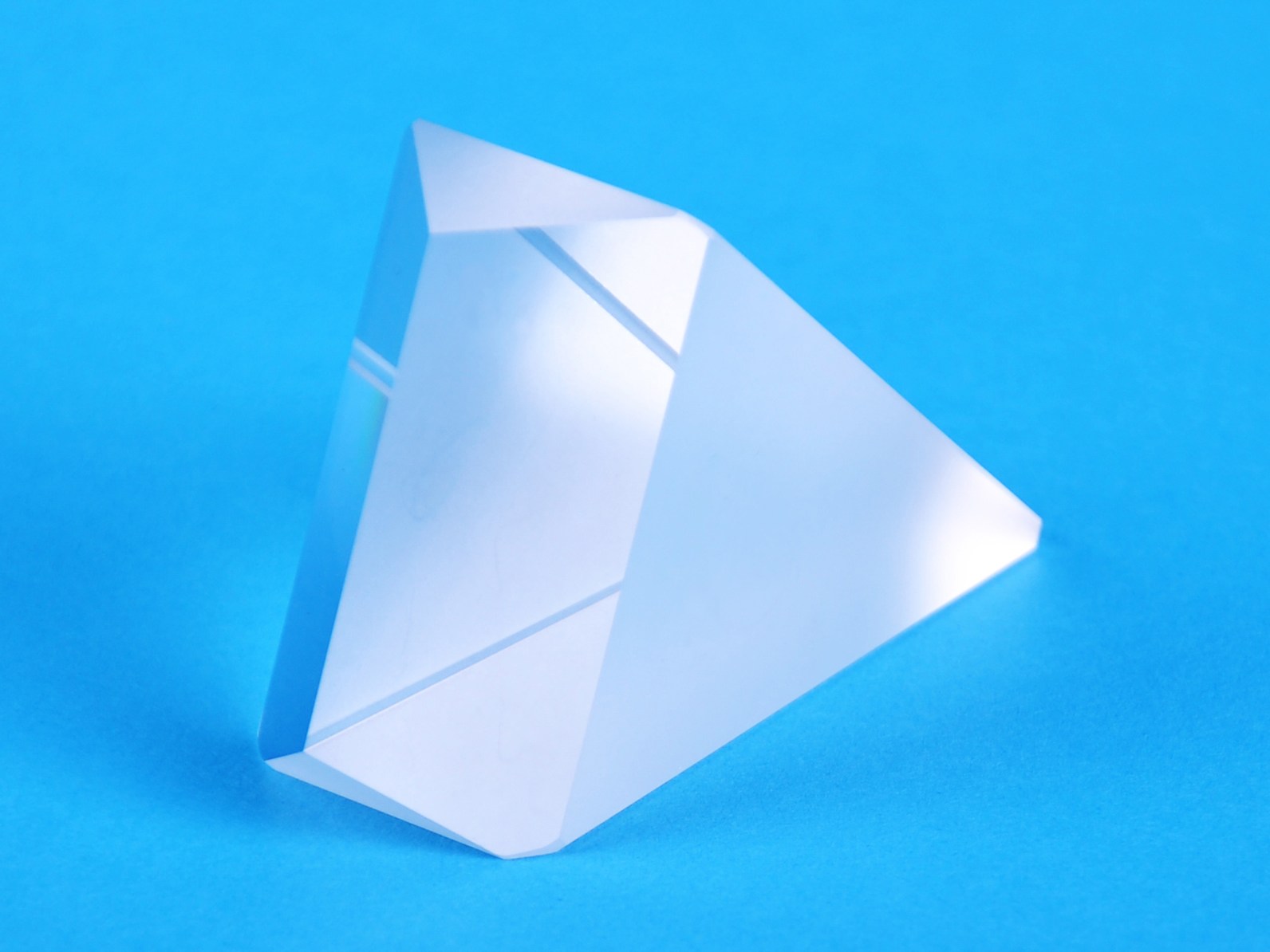

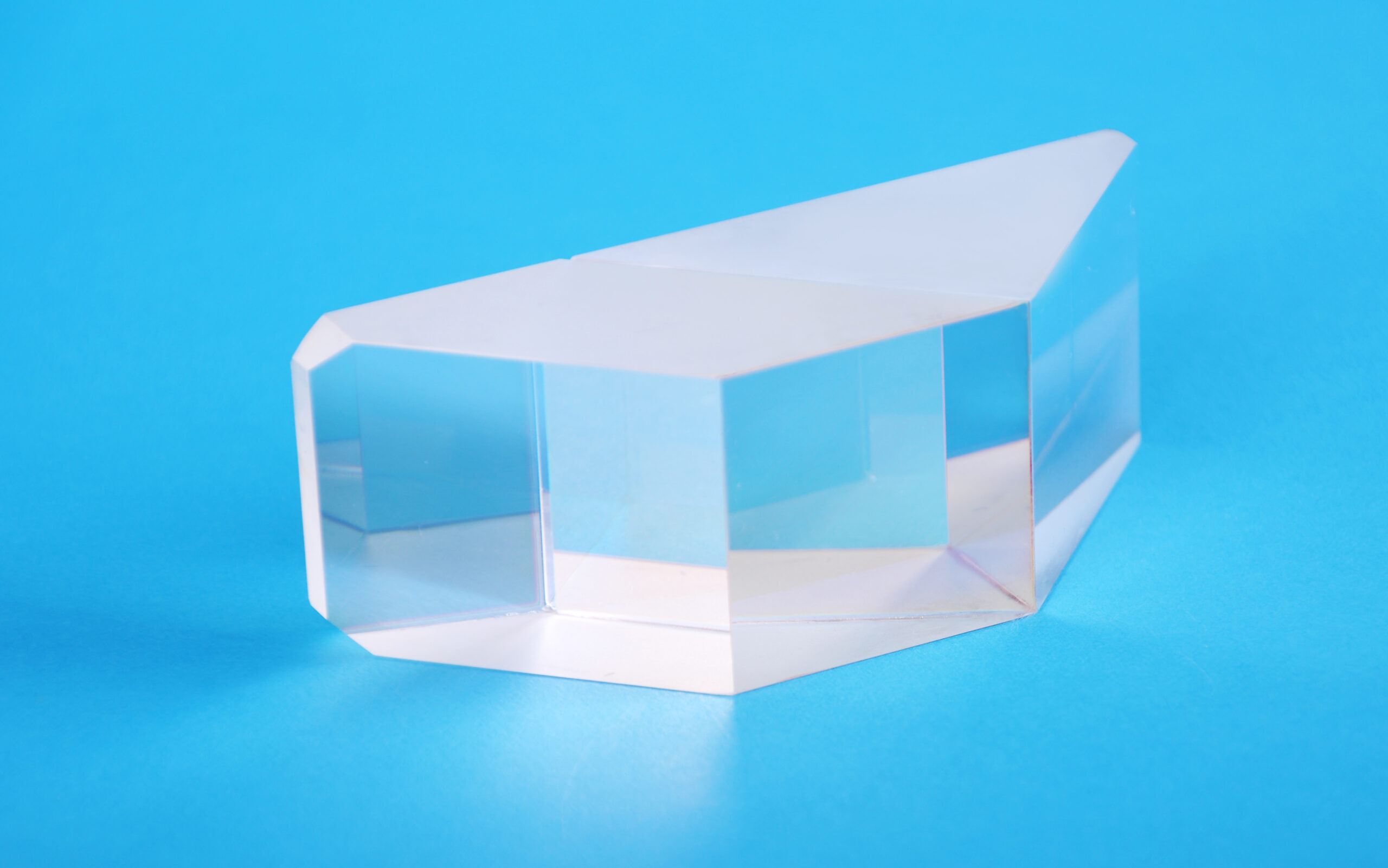

180° Dove-Prismen

180° reflection with inversed image

The prism are characterized by a high optical power handling > 1 GW/cm 2 and a precise 180° beam deviation. Therefore, the components are often used in high-end 1064 nm laser systems.

Specifications Description Applications

Just contact us with your requirements.

  • Substrate materials: N-BK7 (grade A), UV-quartz glass
  • Operation wavelength: 1064 nm +/- 2 nm
  • Dimensions : from 19 x 8 mm to 70 x 35 mm
  • Beam deviation : 180° +/- 5″
  • AR-coating @1064nm with T > 99,9%
  • Damage threshold > 1 GW/cm² for 10 ns pulses (acc. GJB2485-1999)

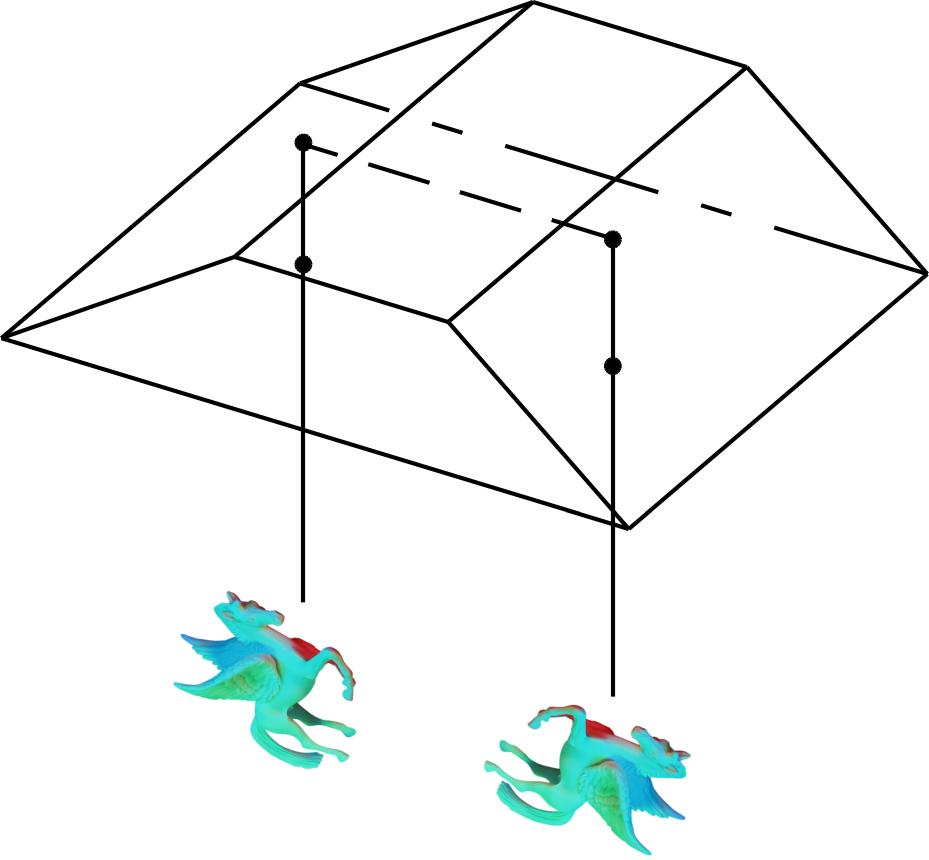

Dove prisms are used to invert the image without deviating angles.

  • Image rotation
  • Microfilm viewing
  • Optical topography measurement

Just ask!
