Dachkantprismen

90 ° deflection with reversed image

Pegasus Lasersysteme offers a wide range of roof prism made of N-BK7.

Just contact us with your requirements.

Specifications Description Applications
  • Substrate material: N-BK7, grade A (others on request)
  • Angular deviation : 90° +/- 3″ (+/- 1″ on request)
  • Surface quality: 60-40 scratch-dig (40-20 on request)
  • Flatness: lambda/4@632.8 nm (lambda/10 on request)

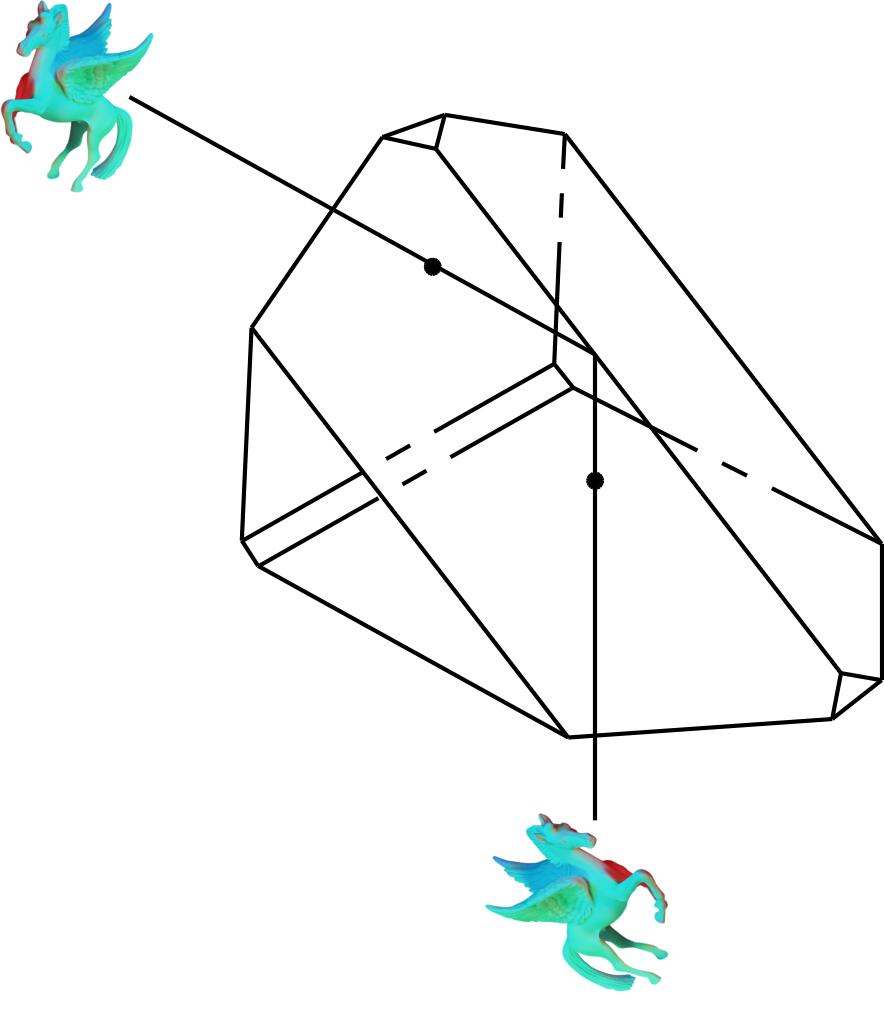

The roof prism generates a beam deflection by 90 ° with simultaneous image reversal. A reflective surface is replaced by a roof surface.

  • Telescope / binocular
  • Camera
  • Optical instruments
  • Imaging systems
Art.-no.Dimension (mm)Beam deviation
PL.RFP.01028 x 890° +/- 3"
PL.RFP.020210 x 1090° +/- 3"
PL.RFP.030215 x 1590° +/- 3"
PL.RFP.040220 x 2090° +/- 3"

Customized manufacturing on request.

Just ask!
